LDLT matrix inversion algorithm

This provides some examples of the different list-based schedulers that are available in B-ASIC.

from b_asic.architecture import Memory, ProcessingElement
from b_asic.core_operations import MADS, Reciprocal
from b_asic.list_schedulers import (
    EarliestDeadlineScheduler,
    HybridScheduler,
    LeastSlackTimeScheduler,
    MaxFanOutScheduler,
)
from b_asic.schedule import Schedule
from b_asic.scheduler import ALAPScheduler, ASAPScheduler
from b_asic.sfg_generators import ldlt_matrix_inverse
from b_asic.special_operations import Input, Output

sfg = ldlt_matrix_inverse(N=3, pe="mads")

The SFG is

sfg

Set latencies and execution times.

sfg.set_latency_of_type(MADS, 3)
sfg.set_latency_of_type(Reciprocal, 2)
sfg.set_execution_time_of_type(MADS, 1)
sfg.set_execution_time_of_type(Reciprocal, 1)

Create an ASAP schedule.

schedule = Schedule(sfg, scheduler=ASAPScheduler())
print("Scheduling time:", schedule.schedule_time)
schedule

Scheduling time: 30

Create an ALAP schedule.

schedule = Schedule(sfg, scheduler=ALAPScheduler())
print("Scheduling time:", schedule.schedule_time)
schedule

Scheduling time: 30

Create an earliest deadline schedule that uses one MADS and one Reciprocal PE.

resources = {MADS.type_name(): 1, Reciprocal.type_name(): 1}
schedule = Schedule(sfg, scheduler=EarliestDeadlineScheduler(resources))
print("Scheduling time:", schedule.schedule_time)
schedule

Scheduling time: 32

Create a least slack-time schedule that uses one MADS and one Reciprocal PE.

schedule = Schedule(sfg, scheduler=LeastSlackTimeScheduler(resources))
print("Scheduling time:", schedule.schedule_time)
schedule

Scheduling time: 32

Create a max fan-out schedule that uses one MADS and one Reciprocal PE.

schedule = Schedule(sfg, scheduler=MaxFanOutScheduler(resources))
print("Scheduling time:", schedule.schedule_time)
schedule

Scheduling time: 36

Create a HybridScheduler schedule that one MADS and one Reciprocal PE with custom IO times. This is the schedule we will synthesize an architecture for.

input_times = {
    "in0": 0,
    "in1": 1,
    "in2": 2,
    "in3": 3,
    "in4": 4,
    "in5": 5,
}
output_delta_times = {
    "out0": 0,
    "out1": 1,
    "out2": 2,
    "out3": 3,
    "out4": 4,
    "out5": 5,
}
schedule = Schedule(
    sfg,
    scheduler=HybridScheduler(
        resources, input_times=input_times, output_delta_times=output_delta_times
    ),
    schedule_time=32,
    cyclic=True,
)
print("Scheduling time:", schedule.schedule_time)
schedule

Scheduling time: 32

operations = schedule.get_operations()
mads = operations.get_by_type_name(MADS.type_name())

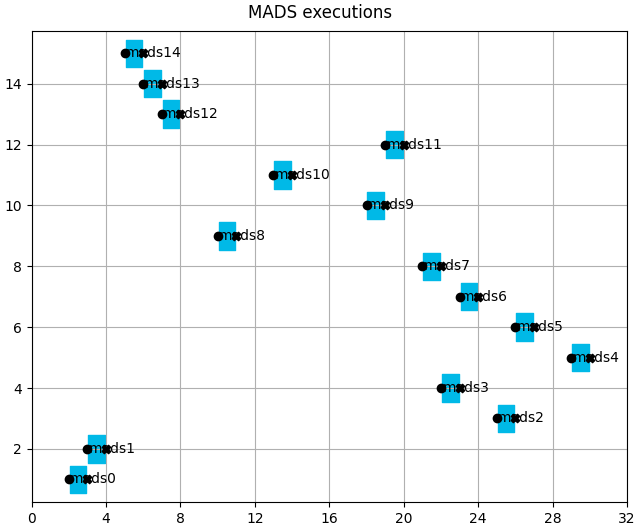

mads.show(title="MADS executions")
reciprocals = operations.get_by_type_name(Reciprocal.type_name())

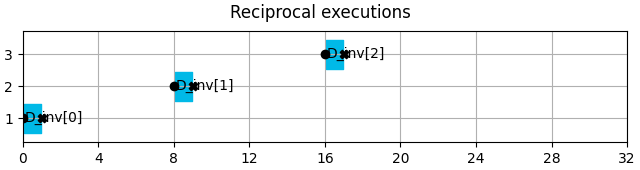

reciprocals.show(title="Reciprocal executions")
inputs = operations.get_by_type_name(Input.type_name())
inputs.show(title="Input executions")
outputs = operations.get_by_type_name(Output.type_name())

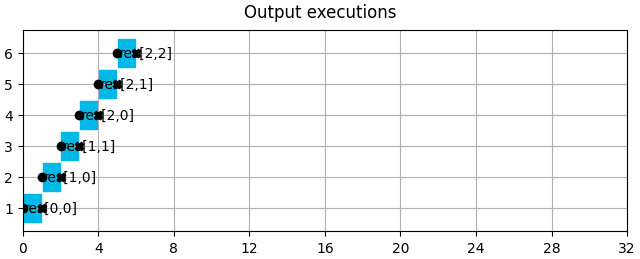

outputs.show(title="Output executions")

mads_pe = ProcessingElement(mads, entity_name="mad")
reciprocal_pe = ProcessingElement(reciprocals, entity_name="rec")

pe_in = ProcessingElement(inputs, entity_name='input')
pe_out = ProcessingElement(outputs, entity_name='output')

mem_vars = schedule.get_memory_variables()

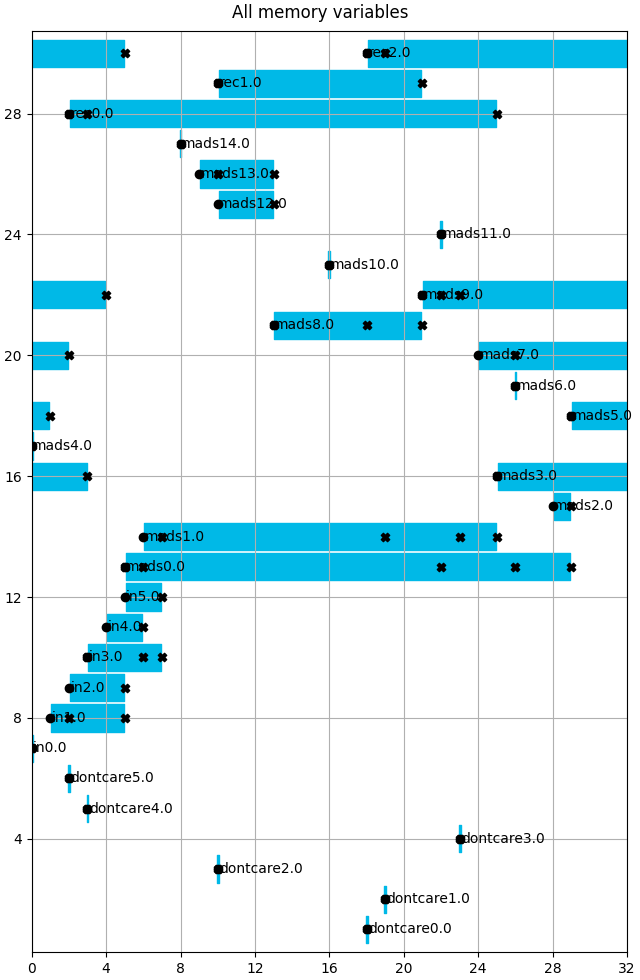

mem_vars.show(title="All memory variables")
direct, mem_vars = mem_vars.split_on_length()

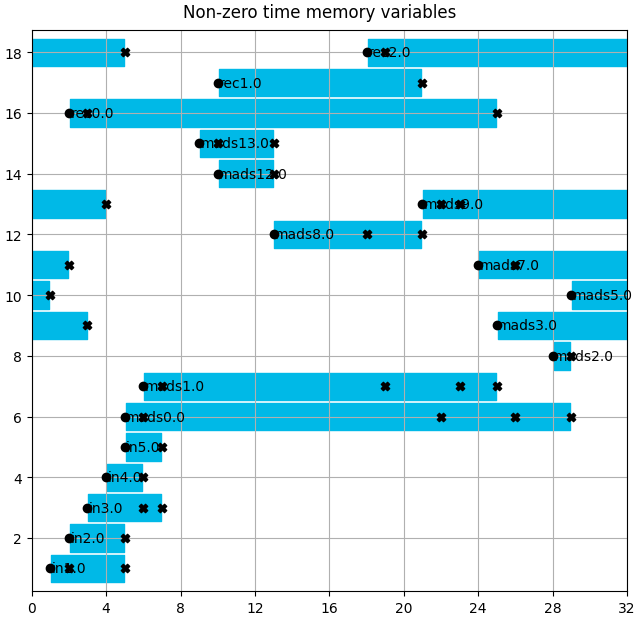

mem_vars.show(title="Non-zero time memory variables")
mem_vars_set = mem_vars.split_on_ports(
    read_ports=1, write_ports=1, total_ports=2, strategy="greedy_graph_color"
)

•
•
•
•
•
•

memories = []
for i, mem in enumerate(mem_vars_set):
    memory = Memory(mem, memory_type="RAM", entity_name=f"memory{i}")
    memories.append(memory)

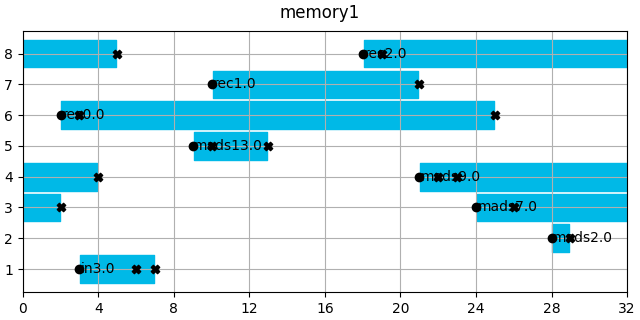

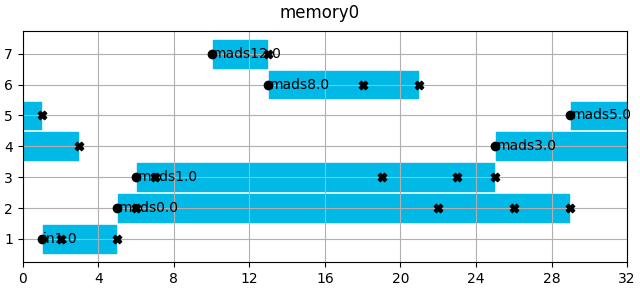

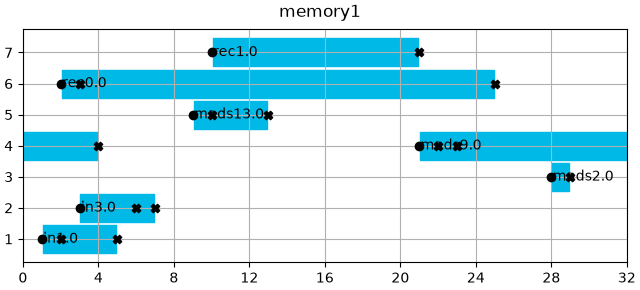

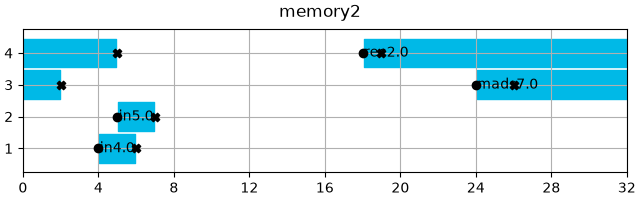

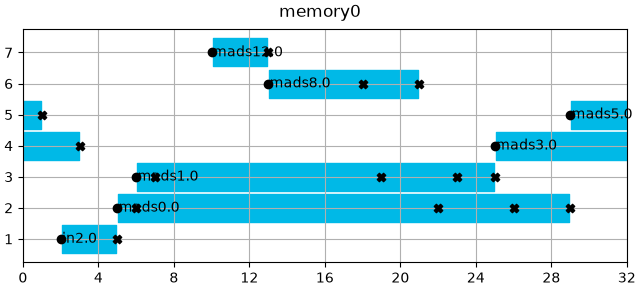

    mem.show(title=f"{memory.entity_name}")
    memory.assign("left_edge")

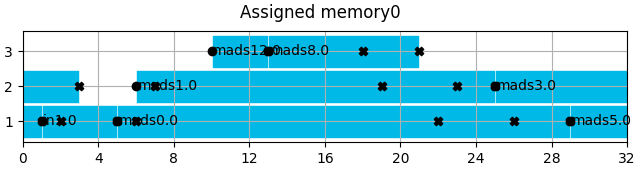

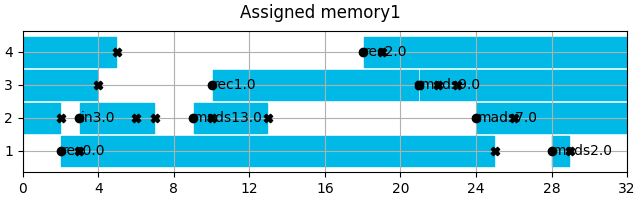

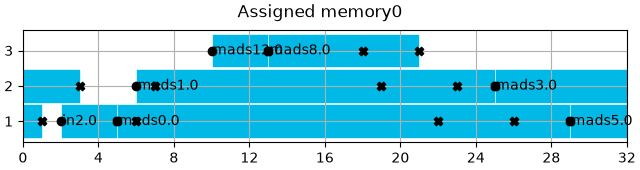

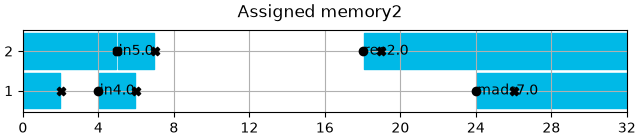

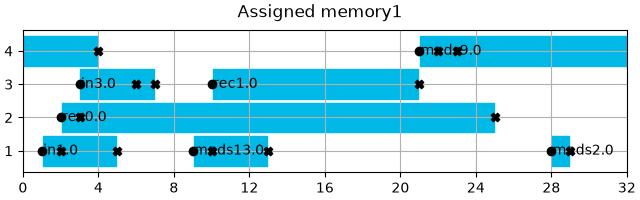

    memory.show_content(title=f"Assigned {memory.entity_name}")

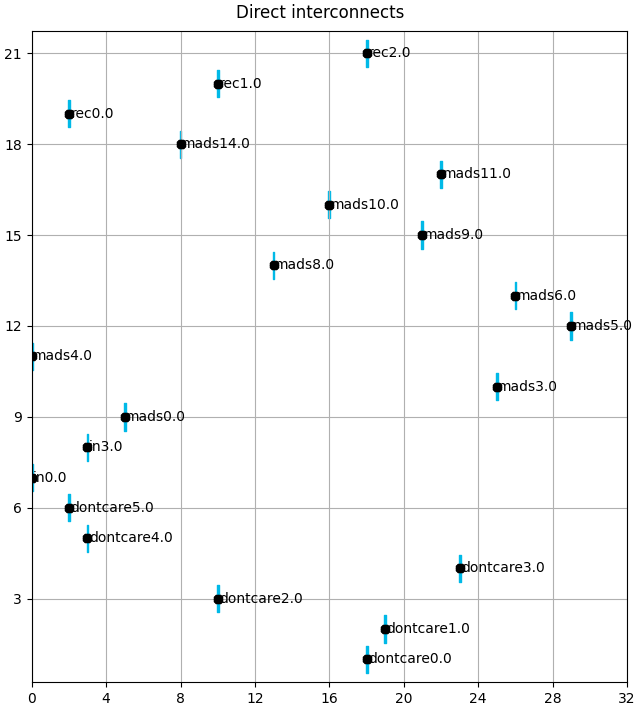

direct.show(title="Direct interconnects")

•
•
•
•
•
•
•
