Memory Constrained Scheduling

from b_asic.architecture import Architecture, Memory, ProcessingElement
from b_asic.core_operations import ConstantMultiplication
from b_asic.fft_operations import R2Butterfly
from b_asic.list_schedulers import HybridScheduler
from b_asic.schedule import Schedule
from b_asic.scheduler import ASAPScheduler
from b_asic.sfg_generators import radix_2_dif_fft
from b_asic.special_operations import Input, Output

sfg = radix_2_dif_fft(points=16)

The SFG is

sfg

Set latencies and execution times.

sfg.set_latency_of_type(R2Butterfly, 3)
sfg.set_latency_of_type(ConstantMultiplication, 2)
sfg.set_execution_time_of_type(R2Butterfly, 1)
sfg.set_execution_time_of_type(ConstantMultiplication, 1)

# # %%
# Generate an ASAP schedule for reference
schedule1 = Schedule(sfg, scheduler=ASAPScheduler())
schedule1

Generate a PE constrained HybridSchedule

resources = {R2Butterfly.type_name(): 1, ConstantMultiplication.type_name(): 1}
schedule2 = Schedule(sfg, scheduler=HybridScheduler(resources))
schedule2

direct, mem_vars = schedule2.get_memory_variables().split_on_length()
print("Max read ports:", mem_vars.read_ports_bound())
print("Max write ports:", mem_vars.write_ports_bound())

Max read ports: 3
Max write ports: 3

operations = schedule2.get_operations()
bfs = operations.get_by_type_name(R2Butterfly.type_name())

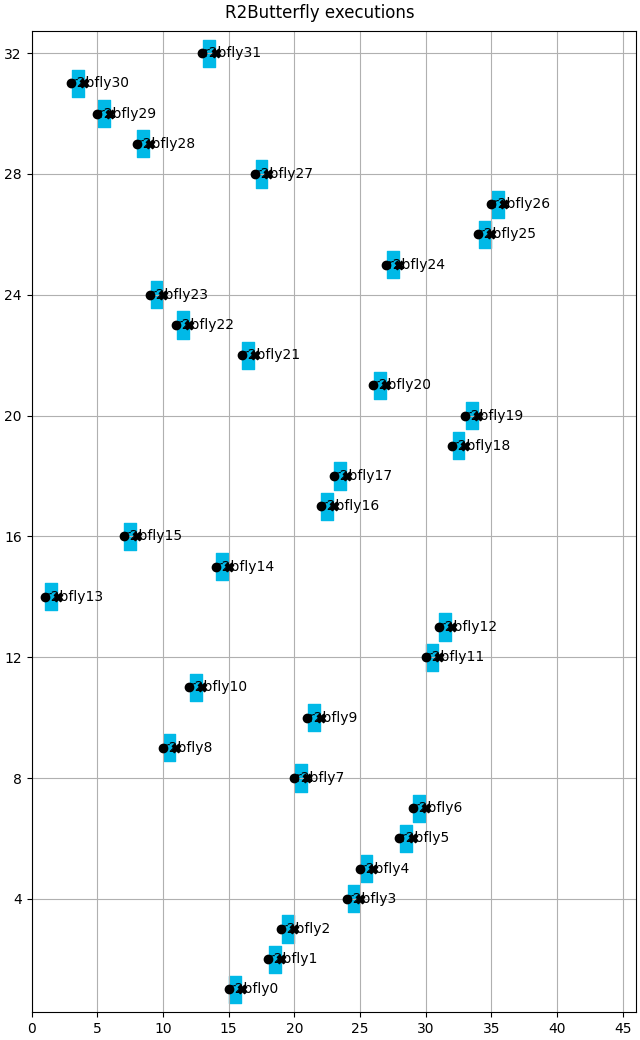

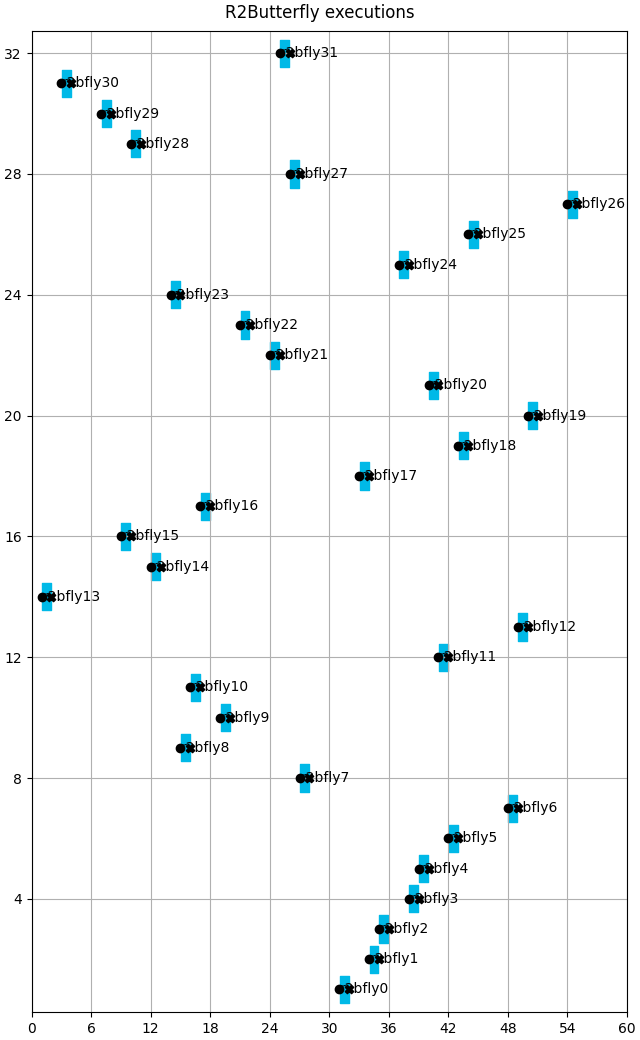

bfs.show(title="R2Butterfly executions")
const_muls = operations.get_by_type_name(ConstantMultiplication.type_name())

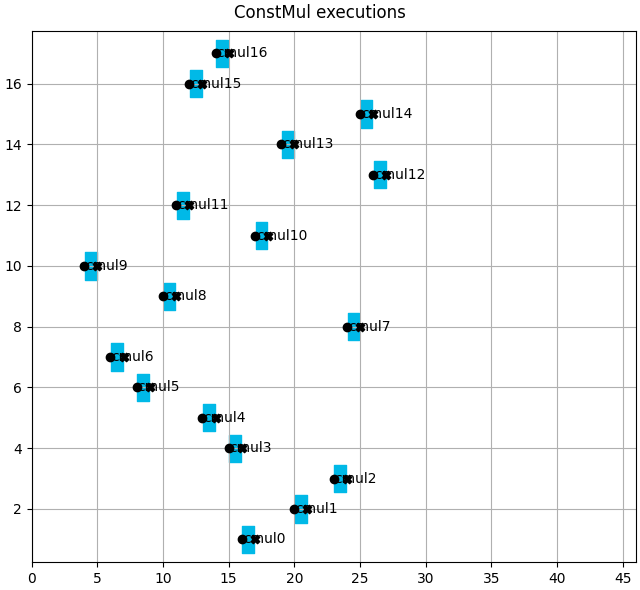

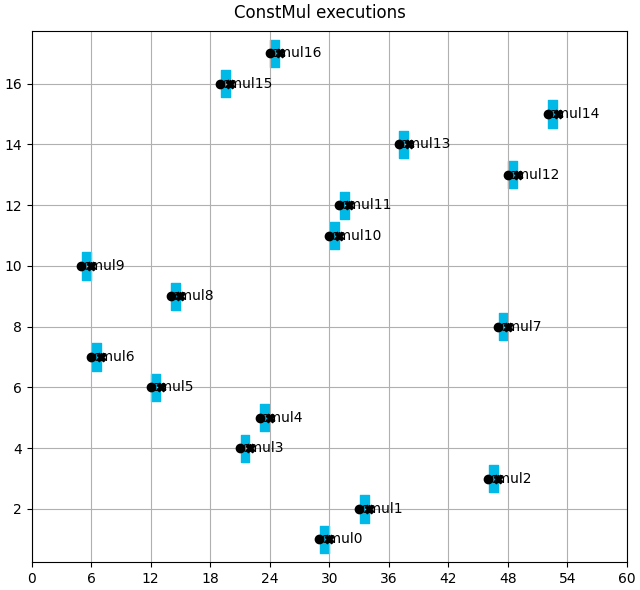

const_muls.show(title="ConstMul executions")
inputs = operations.get_by_type_name(Input.type_name())

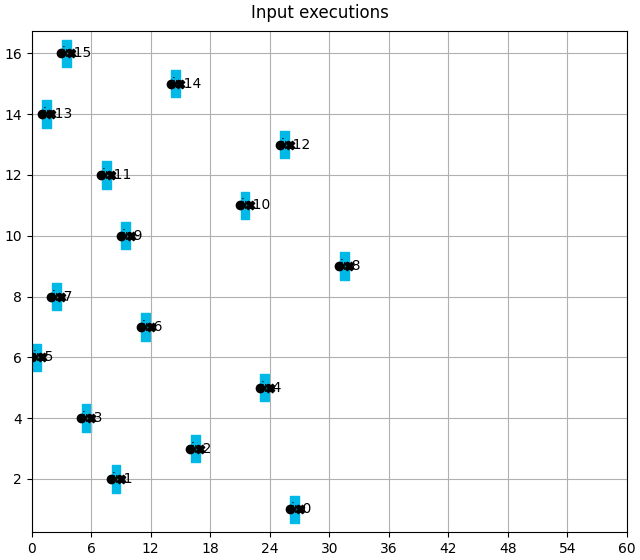

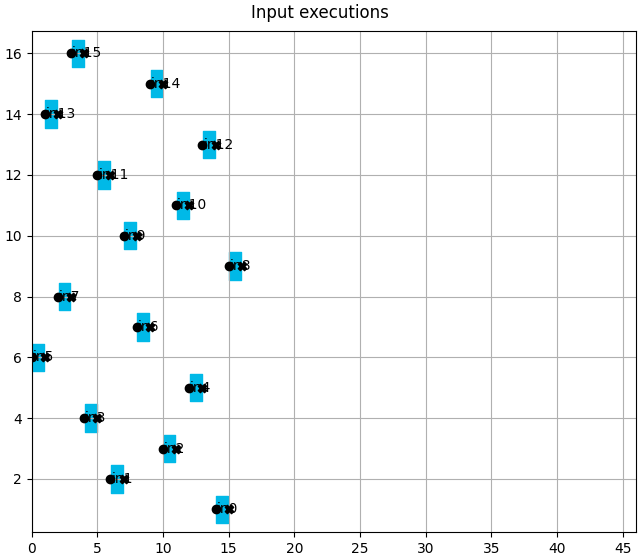

inputs.show(title="Input executions")
outputs = operations.get_by_type_name(Output.type_name())

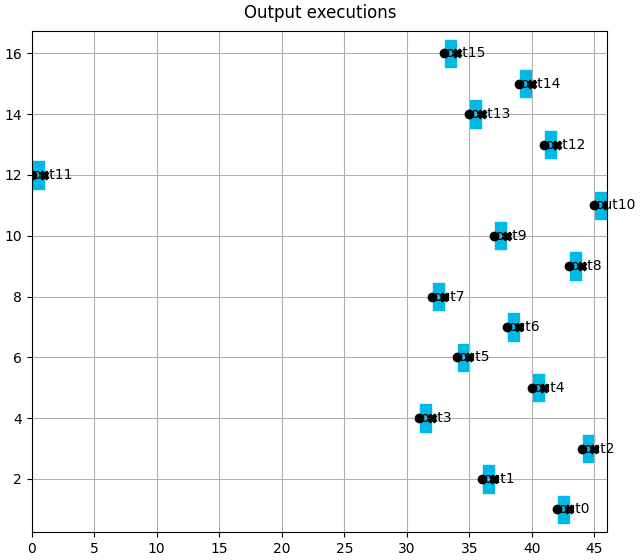

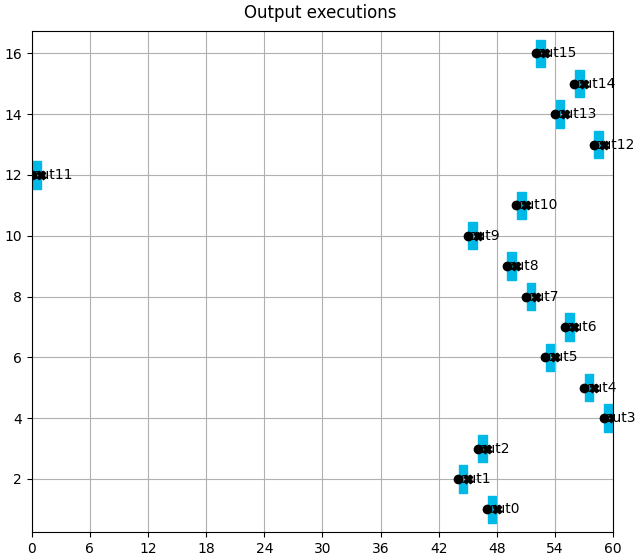

outputs.show(title="Output executions")

bf_pe = ProcessingElement(bfs, entity_name="bf")
mul_pe = ProcessingElement(const_muls, entity_name="mul")

pe_in = ProcessingElement(inputs, entity_name='input')
pe_out = ProcessingElement(outputs, entity_name='output')

mem_vars = schedule2.get_memory_variables()

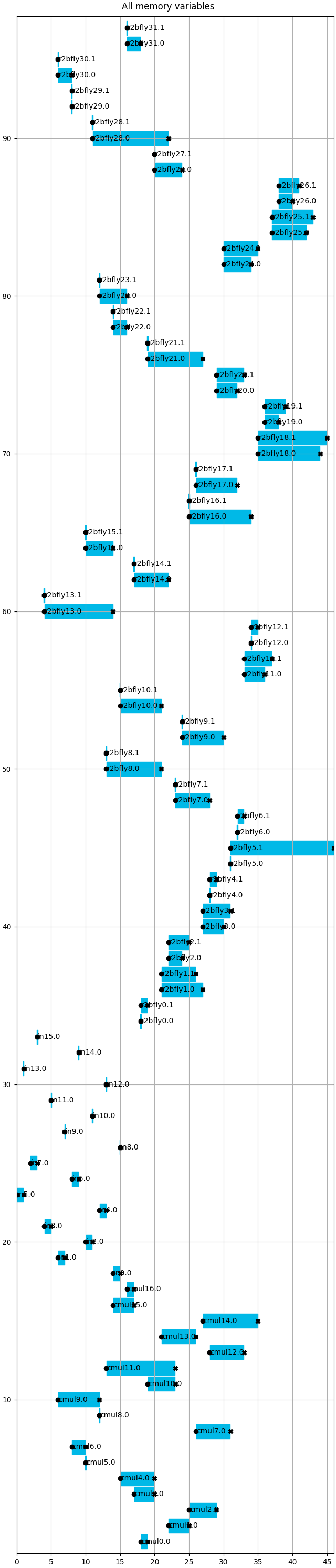

mem_vars.show(title="All memory variables")
direct, mem_vars = mem_vars.split_on_length()

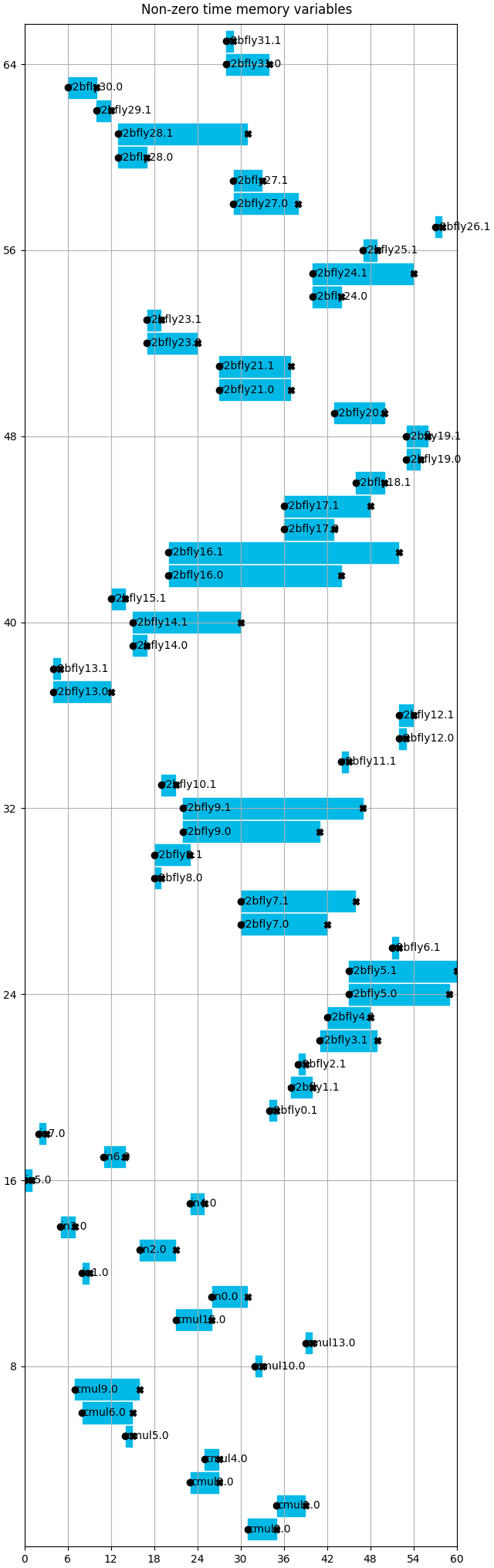

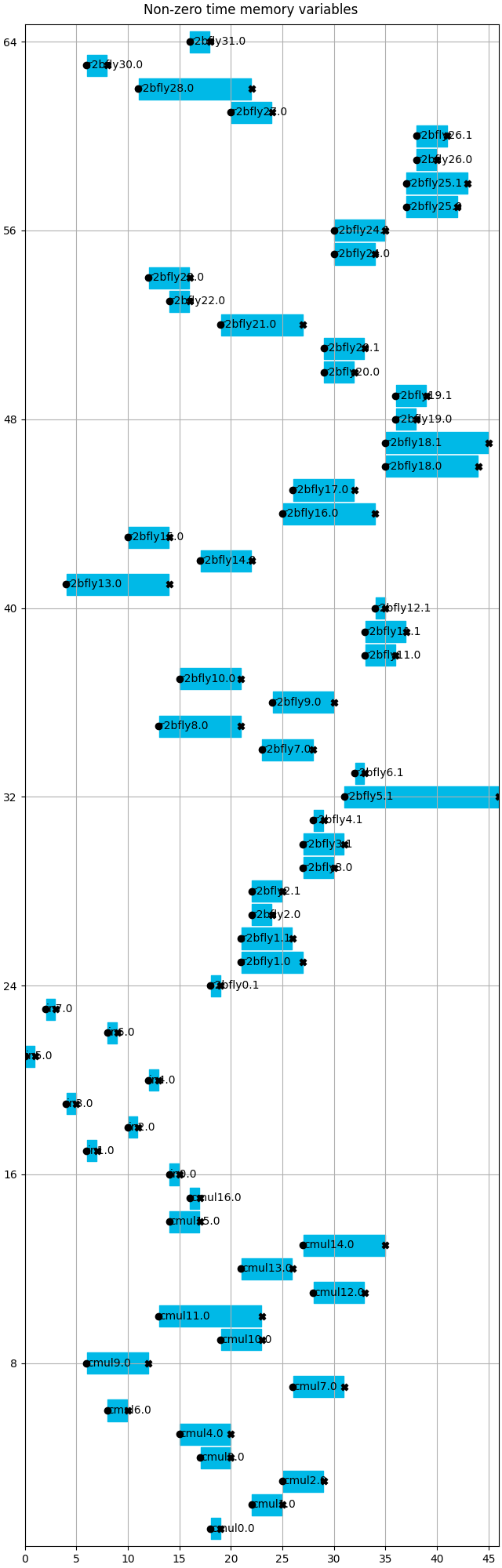

mem_vars.show(title="Non-zero time memory variables")
mem_vars_set = mem_vars.split_on_ports(
    read_ports=1, write_ports=1, total_ports=2, strategy="greedy_graph_color"
)

•
•
•
•
•
•

memories = []
for i, mem in enumerate(mem_vars_set):
    memory = Memory(mem, memory_type="RAM", entity_name=f"memory{i}")
    memories.append(memory)

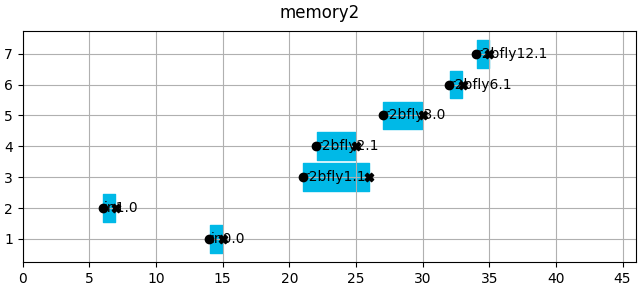

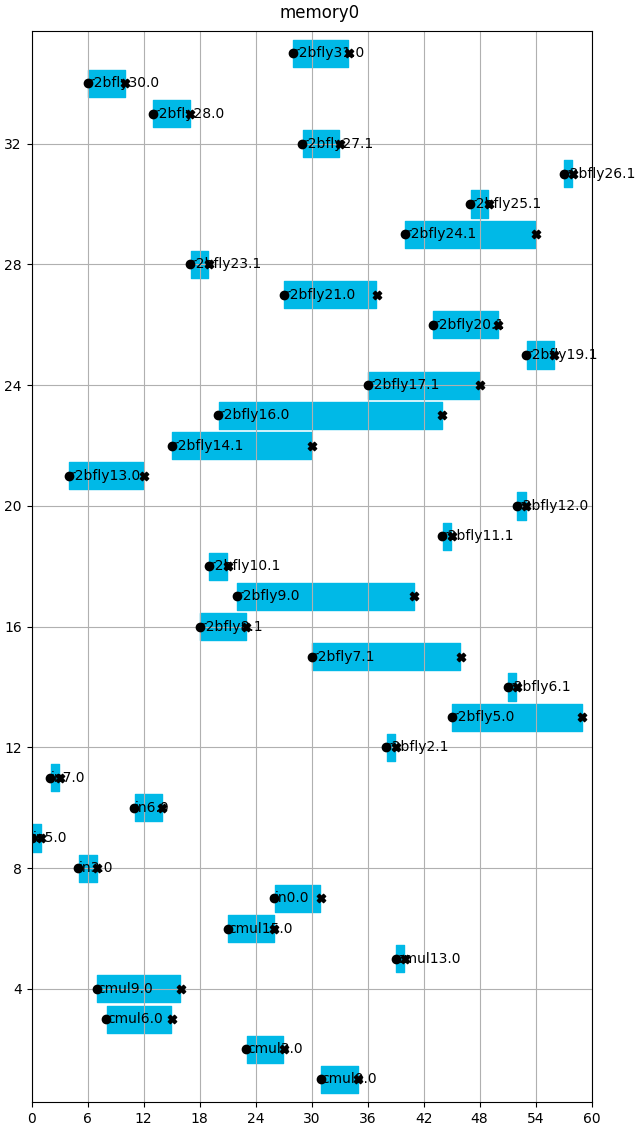

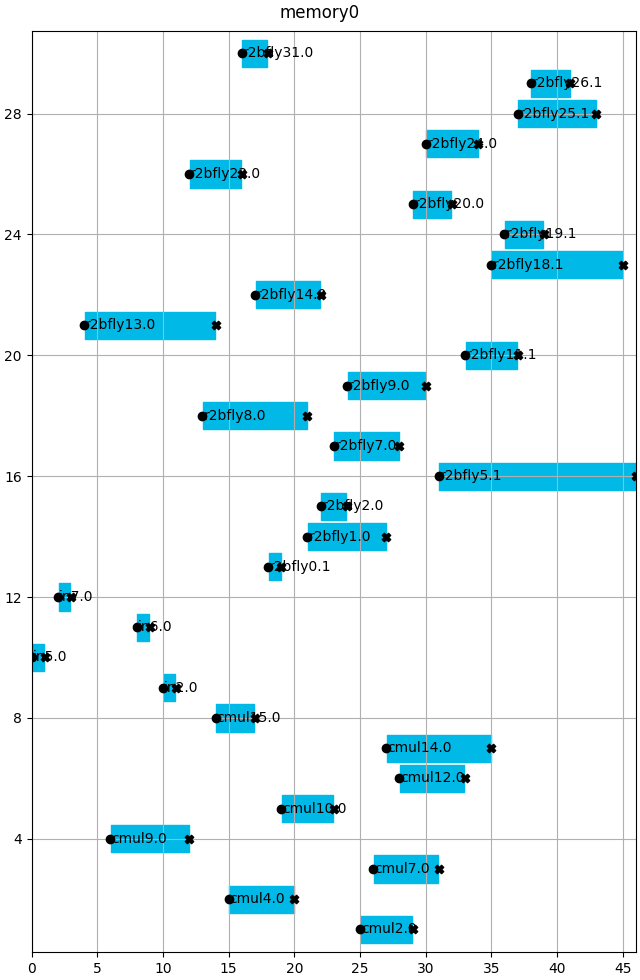

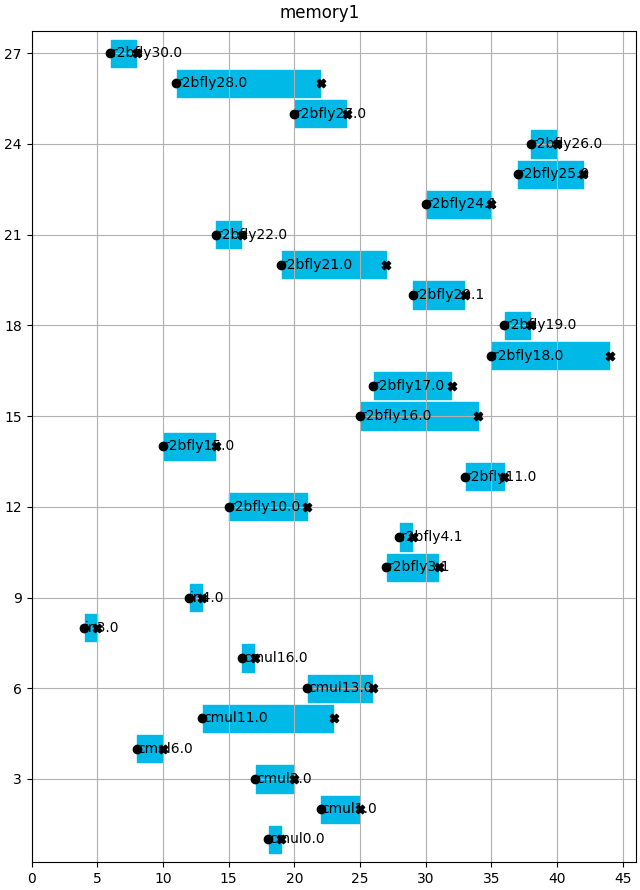

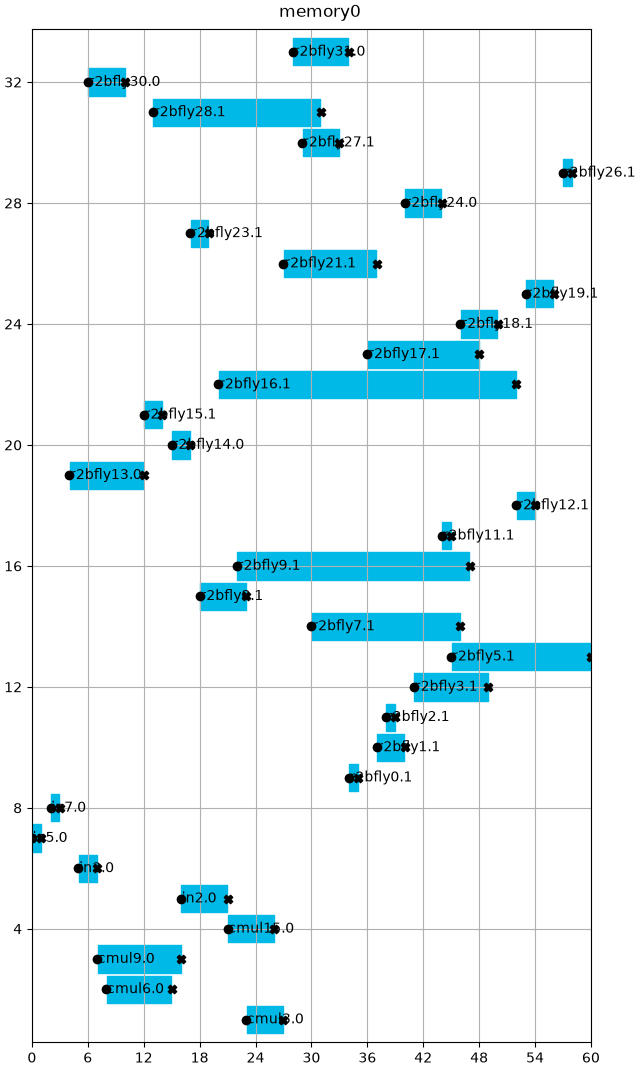

    mem.show(title=f"{memory.entity_name}")
    memory.assign("greedy_graph_color")

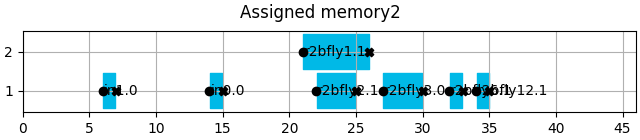

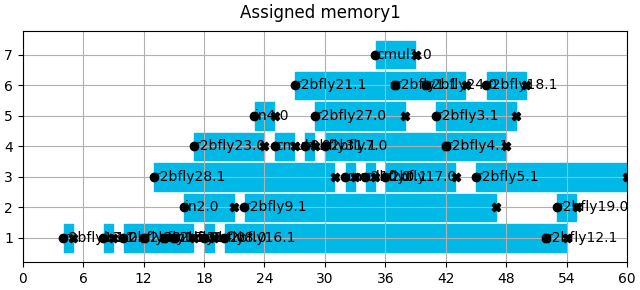

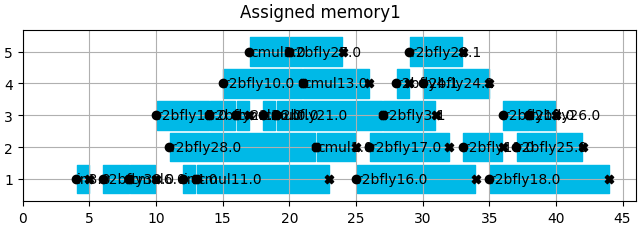

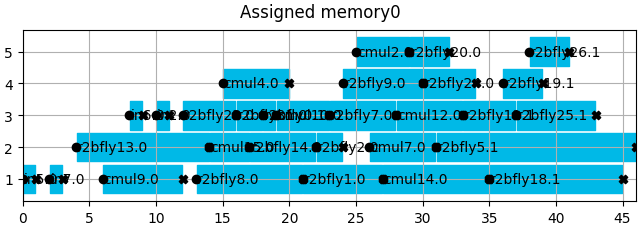

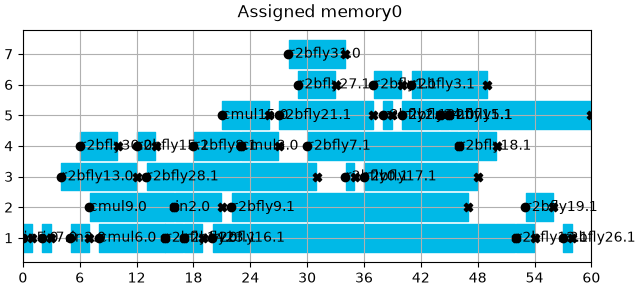

    memory.show_content(title=f"Assigned {memory.entity_name}")

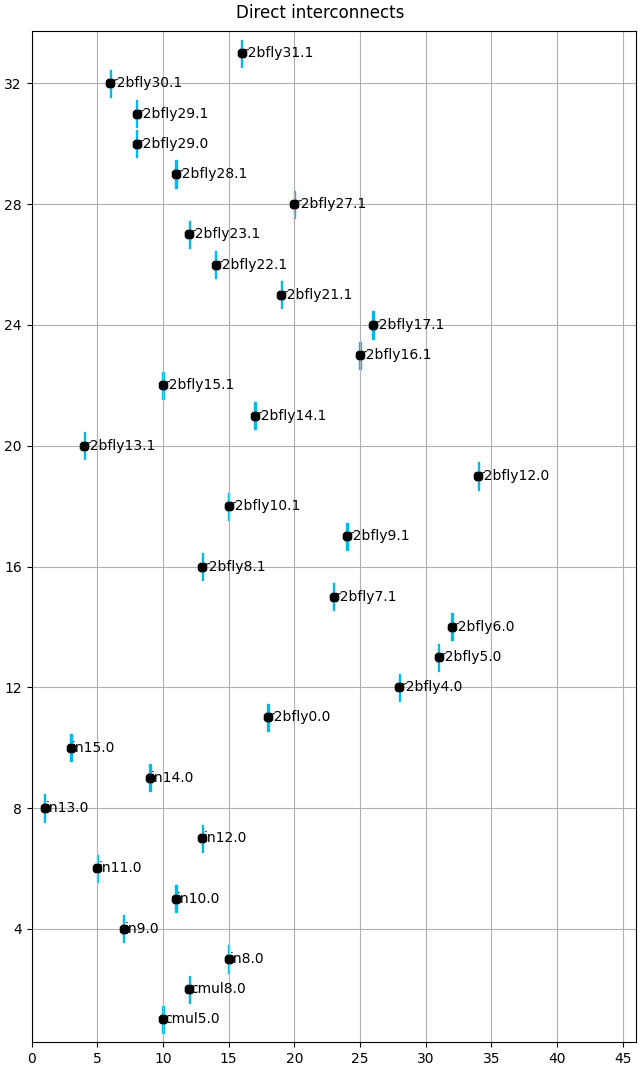

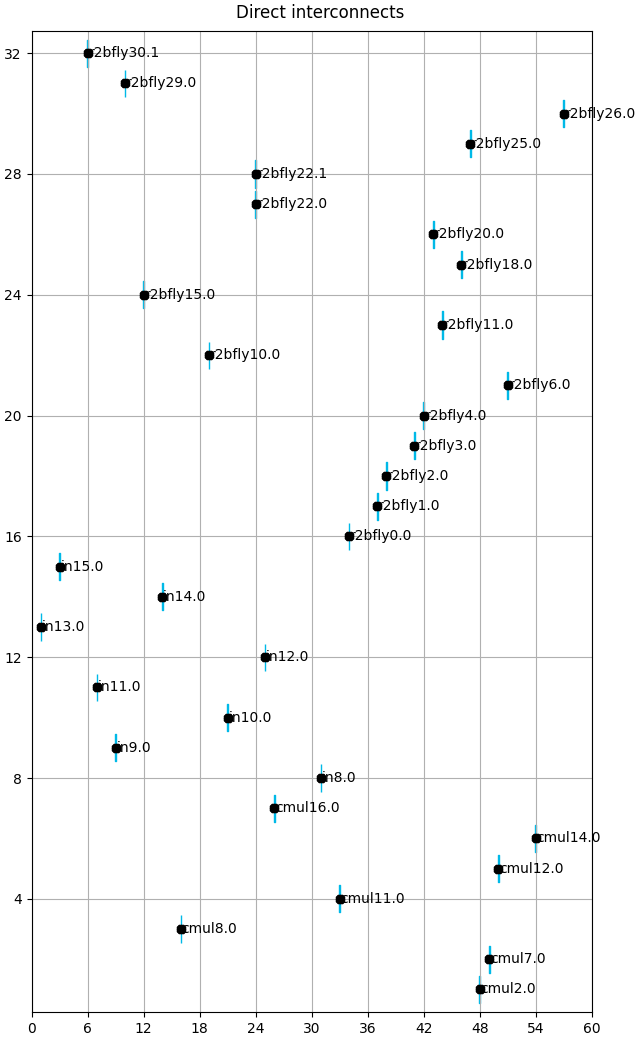

direct.show(title="Direct interconnects")

•
•
•
•
•
•
•

arch = Architecture(
    {bf_pe, mul_pe, pe_in, pe_out},
    memories,
    direct_interconnects=direct,
)
arch

Generate another HybridSchedule but this time constrain the amount of reads and writes to reduce the amount of memories

resources = {R2Butterfly.type_name(): 1, ConstantMultiplication.type_name(): 1}
schedule3 = Schedule(
    sfg,
    scheduler=HybridScheduler(
        resources, max_concurrent_reads=2, max_concurrent_writes=2
    ),
)
schedule3

direct, mem_vars = schedule3.get_memory_variables().split_on_length()
print("Max read ports:", mem_vars.read_ports_bound())
print("Max write ports:", mem_vars.write_ports_bound())

Max read ports: 2
Max write ports: 2

operations = schedule3.get_operations()
bfs = operations.get_by_type_name(R2Butterfly.type_name())
bfs.show(title="R2Butterfly executions")
const_muls = operations.get_by_type_name(ConstantMultiplication.type_name())
const_muls.show(title="ConstMul executions")
inputs = operations.get_by_type_name(Input.type_name())
inputs.show(title="Input executions")
outputs = operations.get_by_type_name(Output.type_name())
outputs.show(title="Output executions")

bf_pe = ProcessingElement(bfs, entity_name="bf")
mul_pe = ProcessingElement(const_muls, entity_name="mul")

pe_in = ProcessingElement(inputs, entity_name='input')
pe_out = ProcessingElement(outputs, entity_name='output')

mem_vars.show(title="Non-zero time memory variables")
mem_vars_set = mem_vars.split_on_ports(
    strategy="greedy_graph_color", read_ports=1, write_ports=1, total_ports=2
)

•
•
•
•
•

memories = []
for i, mem in enumerate(mem_vars_set):
    memory = Memory(mem, memory_type="RAM", entity_name=f"memory{i}")
    memories.append(memory)

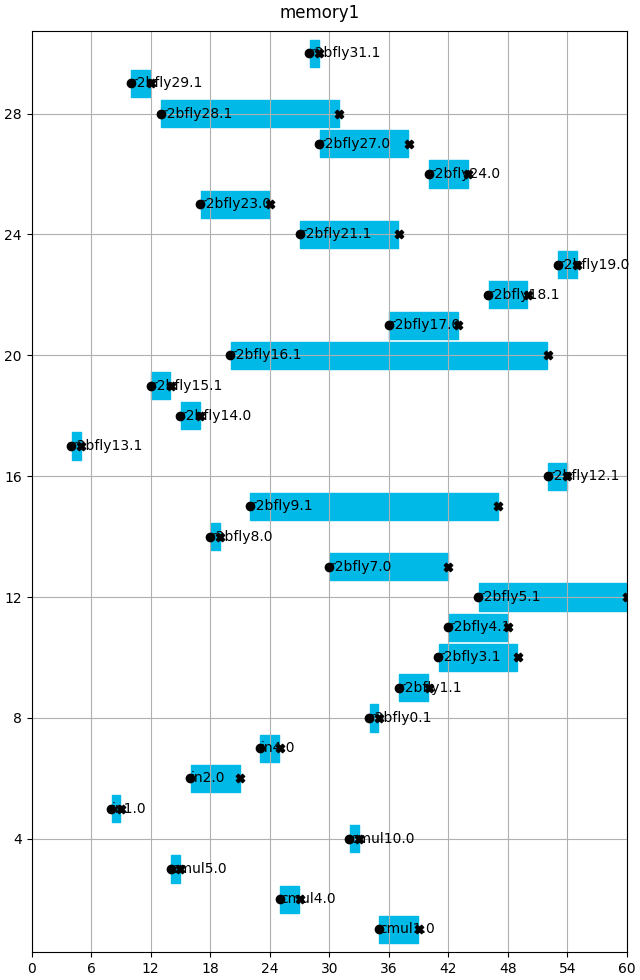

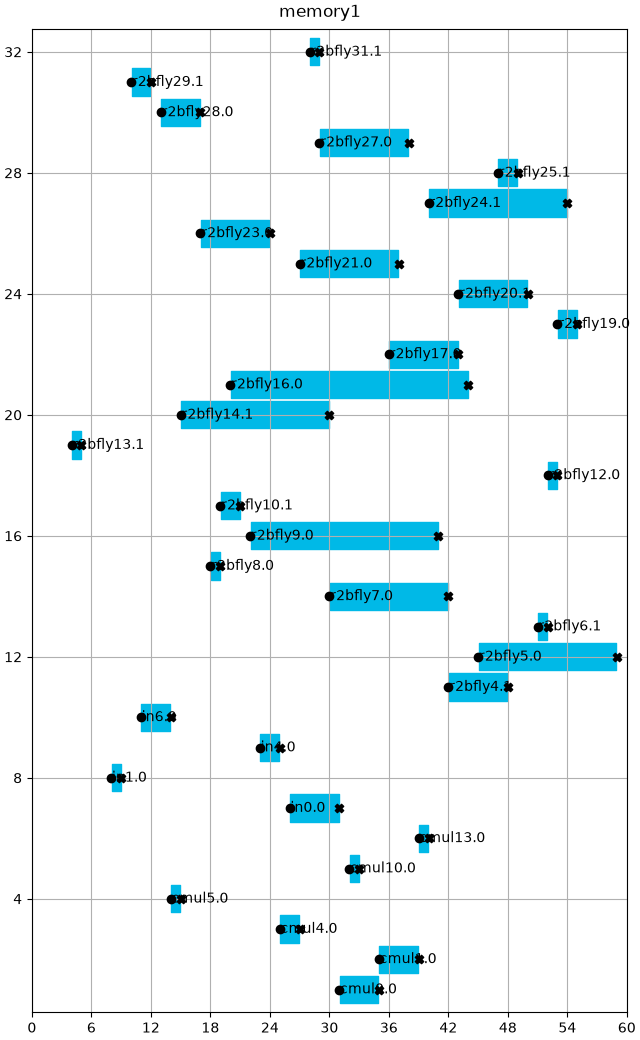

    mem.show(title=f"{memory.entity_name}")
    memory.assign("greedy_graph_color")

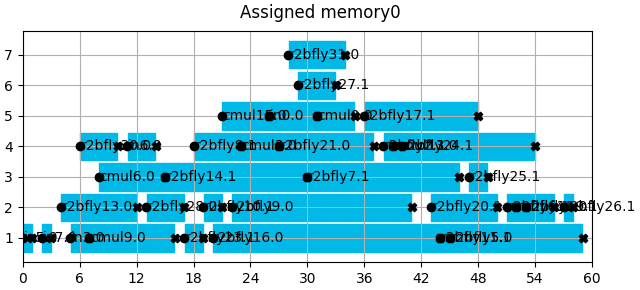

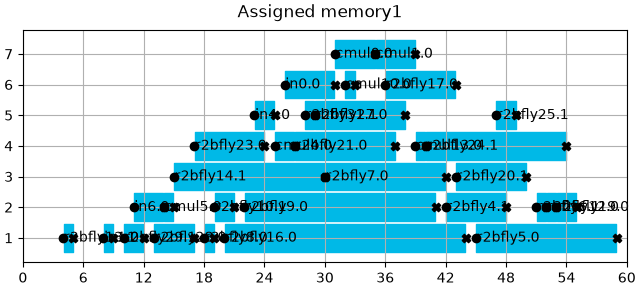

    memory.show_content(title=f"Assigned {memory.entity_name}")

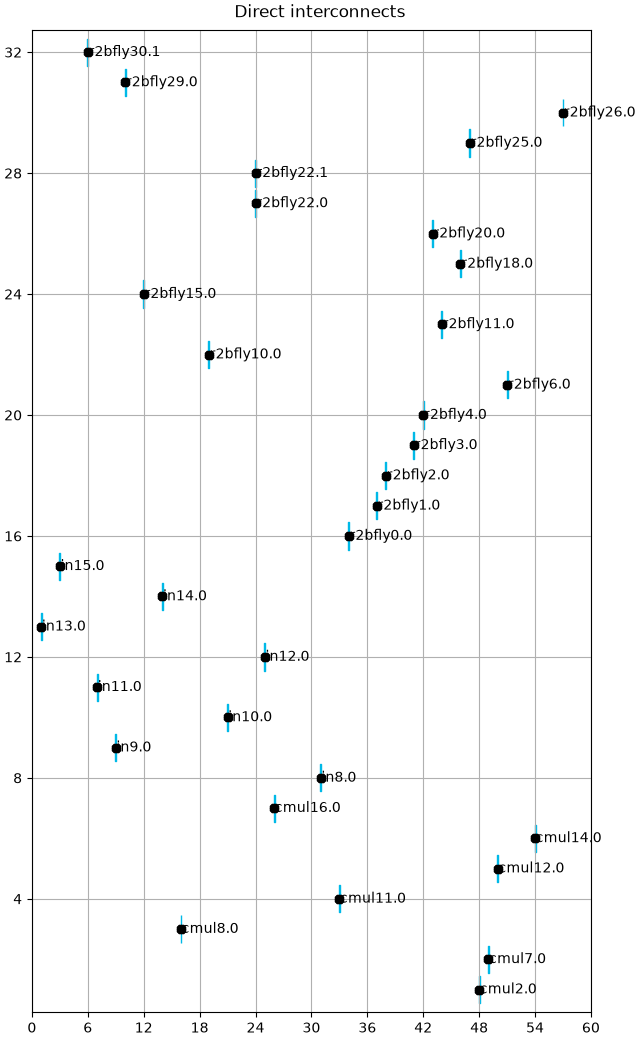

direct.show(title="Direct interconnects")

•
•
•
•
•

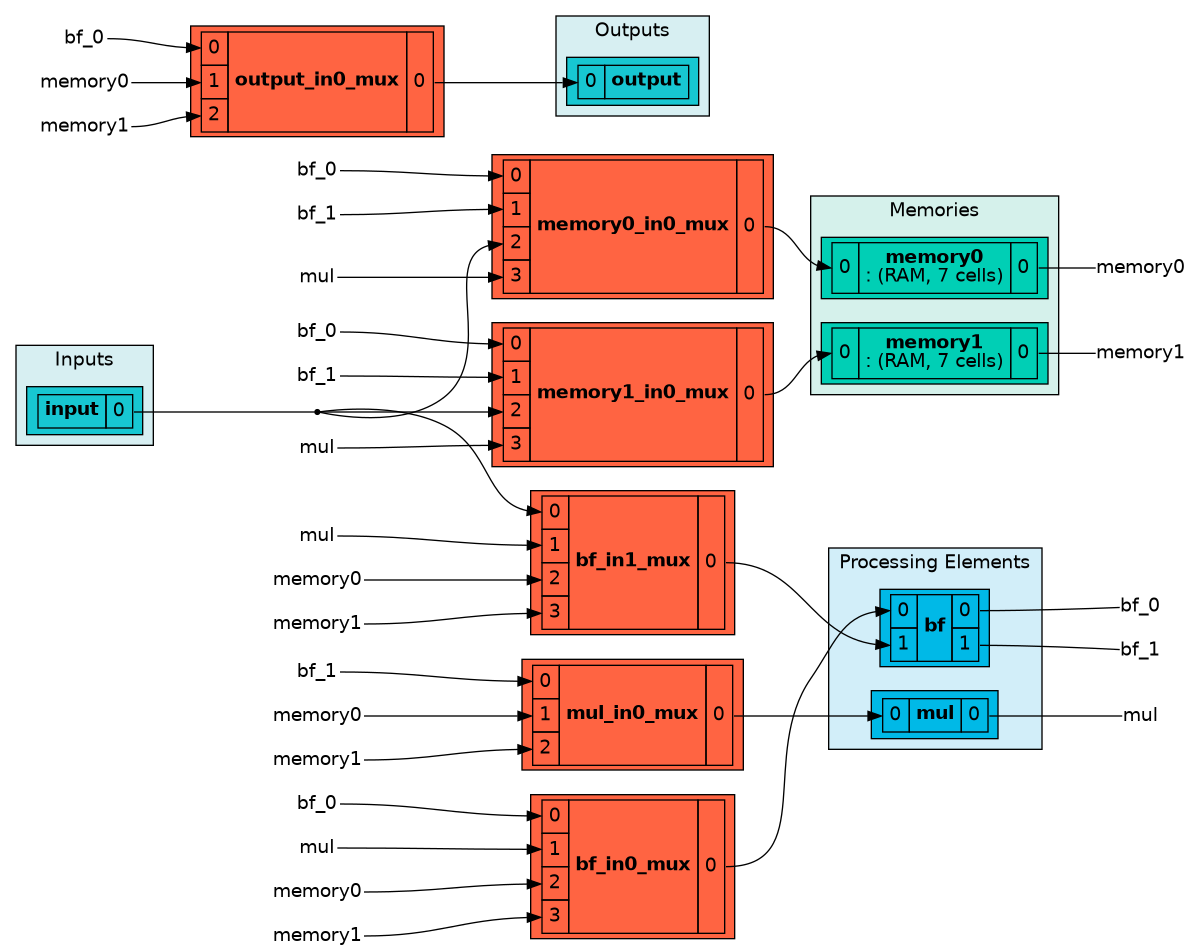

arch = Architecture(
    {bf_pe, mul_pe, pe_in, pe_out},
    memories,
    direct_interconnects=direct,
)
arch
